Intake vs. Exhaust Ratio: The Science of Balanced Attic Ventilation
Proper attic ventilation is a balanced system — intake vents at the soffits or eaves pull in cool outside air, while exhaust vents at the ridge or gable let hot, moisture-laden air escape. The ratio between intake and exhaust is the single most critical design parameter, and it's one that most Tulsa homes get wrong. IRC 2021 Section R806 specifies a minimum net-free vent area (NFVA) of 1/150 of the attic floor area when the attic has a vapor retarder, or 1/300 when a Class I or II vapor retarder is installed. But here's where the math matters for Tulsa: at a 1/300 ratio, a 2,000-square-foot home needs 6.67 square feet of NFVA — and half of that must be intake and half exhaust. That's 3.33 square feet of intake (distributed across soffit vents) and 3.33 square feet of exhaust (at the ridge).

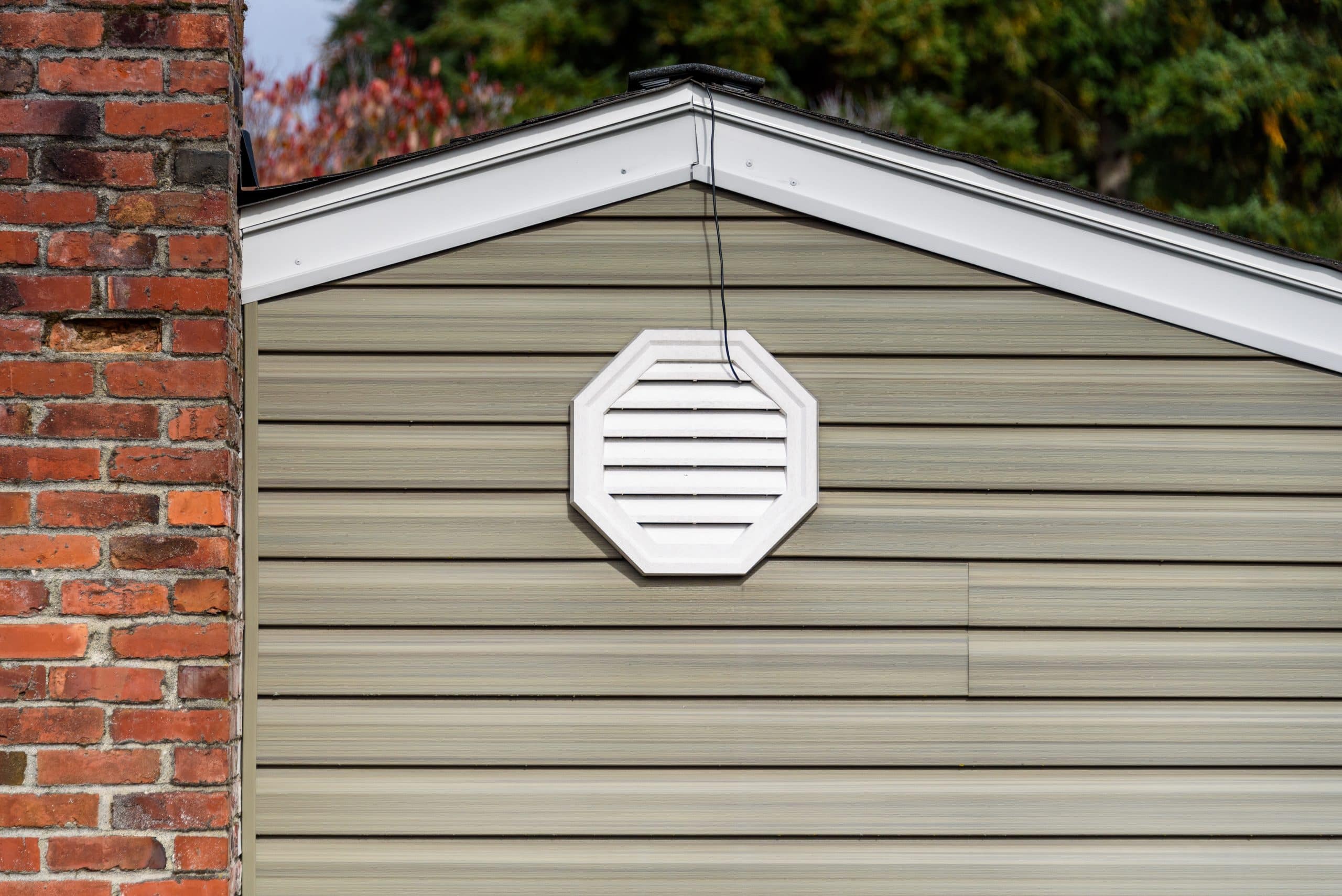

In practice, most Tulsa-area homes built before 2010 have only gable-end vents or a few static roof vents providing exhaust, with minimal soffit intake. The result is a severely unbalanced system where exhaust capacity exceeds intake by 2:1 or more — negative pressure that pulls conditioned air out of the living space through ceiling penetrations, wasting energy and drawing humidity into the attic. Proof Construction's diagnostic process includes a smoke pencil test at the soffit vents: if smoke is pulled upward into the vent rather than pushed out, the intake is undersized. We've found that 8 out of 10 Tulsa homes we inspect have an intake-to-exhaust ratio worse than 1:3, meaning they're operating at less than 40% of design efficiency.

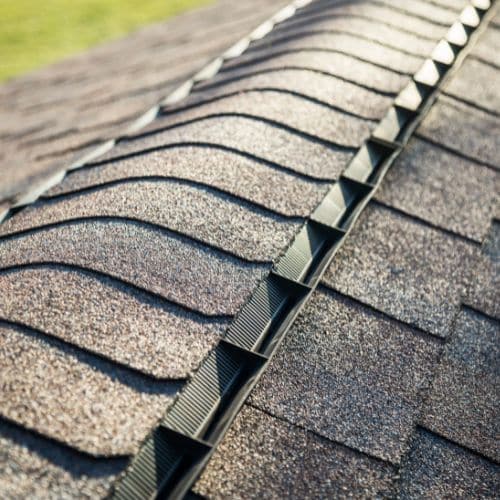

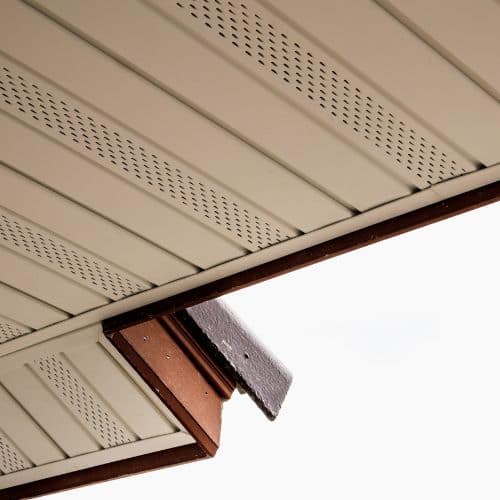

The physics are straightforward: for every cubic foot of hot air that exits through the ridge vent, one cubic foot of cool air must enter through the soffit. Continuous soffit vents — aluminum or vinyl strips running the full length of the eave — provide the most uniform intake distribution. Proof Construction specifies a minimum 2-inch-wide continuous soffit vent on both sides of the home, which provides approximately 4.5 square inches of NFVA per linear foot. Combined with a 1.5-inch ridge vent (approximately 3.5 square inches NFVA per linear foot), a 50-foot roofline with soffit vents on both sides and ridge vent along the peak achieves a balanced 1:1 intake-to-exhaust ratio at the 1/300 NFVA requirement, with built-in redundancy for Tulsa's extreme conditions.
Power Vents vs. Ridge Vents: What Works Best in Tulsa's Heat
The power-vent debate is one of the most contested topics in attic ventilation. Proponents of powered attic ventilators (PAVs) point to their ability to move 1,200–1,800 CFM of air per fan — roughly 20–30 attic air changes per hour in a typical 2,000-square-foot home. Ridge vent advocates counter that PAVs can depressurize the attic, pulling conditioned air from the living space and increasing cooling costs by 10–15%. A 2023 study by the Florida Solar Energy Center (which applies directly to Tulsa's similar climate with 2,200+ cooling degree days) found that PAVs reduced peak attic temperatures by only 3–5°F compared to ridge vents while increasing total HVAC energy consumption by 8–12% due to air leakage from the conditioned space.
For Tulsa homes, ridge vent combined with continuous soffit vent remains the gold standard for several data-driven reasons. First, ridge vents operate passively using natural convection — hot air rises naturally to the peak and exits without any mechanical energy consumption. A 40-foot ridge vent on a moderately sloped roof (6/12 pitch) moves approximately 400–600 CFM under natural convection during peak summer conditions, slightly less than a powered fan but with zero operating cost and zero moving parts to fail. Second, ridge vents maintain neutral attic pressure, meaning there's no pressure differential that could pull conditioned air through ceiling penetrations. Third, ridge vents are covered by most asphalt shingle manufacturers' warranties — CertainTeed, Owens Corning, and GAF all require ridge vent or equivalent for their 50-year shingle warranties to remain valid.

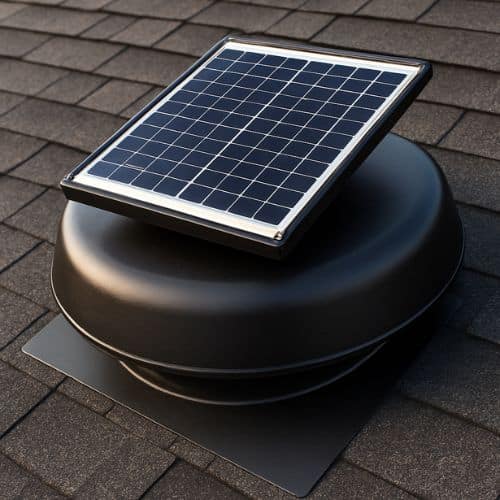

Power vents have their place in Tulsa, but only in specific scenarios: (1) when roof geometry prevents ridge vent installation (e.g., hip roofs with multiple valleys and no continuous ridge line), (2) when attic obstructions like HVAC equipment or storage block the natural airflow path, or (3) when a home has a history of moisture issues that require active mechanical drying. Proof Construction installs solar-powered attic fans (the Natural Light 30-watt model) for these situations, with a thermostat set to activate at 100°F and a humidistat that runs the fan when relative humidity exceeds 60%. The solar-powered units operate at zero electrical cost and are eligible for the same 30% federal tax credit as other residential solar equipment under 26 U.S.C. § 25D.
Moisture Damage and Winter Attic Performance in Tulsa
Attic moisture is Tulsa's silent roof killer. During winter months, warm interior air (70°F, 40–50% relative humidity) rises into the attic and meets the cold underside of the roof deck (often 20–30°F on a January night). At the dew point — typically 48–52°F for Tulsa's winter indoor conditions — the moisture condenses on the roof deck's underside, saturating the plywood or OSB. Over a single heating season, this condensation cycle can occur 40–60 times, leading to visible mold growth, rot in the roof sheathing, and a 30–50% reduction in the nail-holding capacity of the deck — a structural safety issue in a region that averages 60+ severe thunderstorm warnings per year.
Data from the Insurance Institute for Business & Home Safety indicates that inadequate attic ventilation is a contributing factor in 25% of all non-storm-related roof replacement claims in Oklahoma. The fix is straightforward: balanced ventilation that continuously exchanges the attic air volume — approximately 8–10 air changes per hour in summer, 4–6 in winter — to keep the roof deck temperature above the dew point. In Tulsa's climate, that requires a minimum NFVA at the 1/150 ratio (doubling the standard requirement) for homes with unvented attics containing mechanical equipment or ductwork. Proof Construction includes a full attic moisture assessment — using a digital psychrometer to measure temperature and relative humidity at three attic locations — as part of every ventilation installation, with follow-up testing at the 30-day mark to verify that the system is performing as designed.
