Expansive Clay Soil and Tulsa Foundation Types: Why Waterproofing Matters Here
Tulsa sits on some of the most expansive clay soils in the United States — specifically the Woodbine and Denison clay formations, which have a plasticity index of 35–55 and a linear shrinkage of 8–12%. In practical terms, that means a 10-foot-wide foundation trench can see 3–4 inches of lateral soil movement between a dry August (when clay shrinks and cracks) and a wet May (when clay swells by 30–50% of its dry volume). This cyclic expansion and contraction generates hydrostatic pressure against foundation walls that can reach 60 pounds per square foot per foot of depth — enough to bow a 10-inch poured concrete wall inward by 1–2 inches over a 10-year period if the soil is not properly drained.
Tulsa's foundation construction varies by neighborhood age and builder preference. Homes built before 1950 (common in Maple Ridge, Brady Heights, and Florence Park) typically have rubble stone or brick foundations laid without reinforcement, which are particularly vulnerable to water infiltration through mortar joints. Mid-century homes (1950–1980) in areas like Midtown and East Tulsa used unreinforced poured concrete or concrete block, which develops hairline cracks from lateral soil pressure within 5–10 years. Modern homes (1990–present) in Bixby, Jenks, and Broken Arrow feature reinforced poured concrete with steel rebar and minimum 8-inch wall thickness, but even these require proper exterior waterproofing because the reinforcing steel doesn't prevent water penetration through the concrete matrix itself — concrete has a natural permeability of approximately 1,000–2,000 millidarcies, meaning water molecules can migrate through a 10-inch wall in 6–12 hours under hydrostatic pressure.

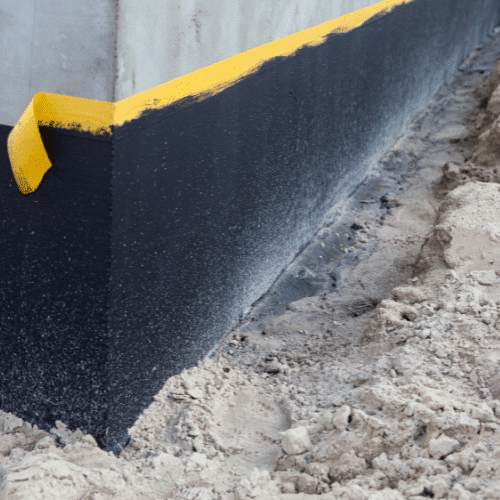

Below-grade waterproofing is fundamentally different from above-grade. Below-grade systems must withstand both hydrostatic pressure (standing water in the soil) and capillary action (water wicking upward through the concrete). Above-grade waterproofing — typically applied to the first 12–18 inches above grade on an exterior wall — only needs to manage wind-driven rain and surface splash. Proof Construction uses a dual-layer approach: for below-grade, a rubberized asphalt membrane (minimum 60 mils) applied to the prepared wall surface, covered by a dimpled drainage board that creates a 1/2-inch air gap against the soil to relieve hydrostatic pressure. For above-grade, a fluid-applied acrylic membrane with fiberglass mesh reinforcement provides a seamless water barrier that can bridge hairline cracks up to 1/16 inch. Both systems are covered by a 25-year material warranty and a 5-year installation warranty from Proof Construction.
Drainage Systems: French Drains, Curtain Drains, and Tulsa's Rainfall Intensity
No waterproofing system can succeed without effective exterior drainage. The Oklahoma Department of Transportation's rainfall intensity data shows that Tulsa experiences a 100-year, 1-hour storm event of 3.2 inches — meaning in any given year, there's a 1% chance of receiving over 3 inches of rain in 60 minutes. A 2,500-square-foot home with a 1,500-square-foot roof area receives approximately 3,100 gallons of water during such a storm. If that water isn't directed away from the foundation, it saturates the soil, increases hydrostatic pressure, and finds its way through any weakness in the foundation barrier.
French drains — perforated 4-inch PVC or corrugated pipe in a 12-inch-wide gravel trench wrapped in nonwoven geotextile fabric — are the standard solution for intercepting groundwater before it reaches the foundation. The trench must be graded at minimum 1/8 inch per foot and daylight at least 10 feet from the foundation or tie into a properly sized stormwater management system. Proof Construction installs French drains at a minimum depth of 18 inches below grade, with the pipe invert set at or above the bottom of the footing to prevent standing water against the foundation wall. For Tulsa homes with flat lots where gravity drainage isn't feasible, we install pop-up emitters with check valves that discharge water when the drain reaches capacity, or tie into an existing storm sewer system with permits from the City of Tulsa's Public Works Department.
Curtain drains serve a different purpose: they intercept surface water flowing toward the foundation from uphill slopes rather than managing groundwater already in the soil. In Tulsa's hillier neighborhoods — areas along the Arkansas River bluffs, near Woodward Park, or around the Cherry Street district — curtain drains are installed 5–10 feet uphill from the foundation, cut into the slope to catch sheet flow runoff before it reaches the house. These drains require 6–8 inches of cover and are typically surfaced with river rock or buried 18 inches deep with a French drain configuration. Proof Construction also installs downspout drainage systems that connect roof leaders directly to buried 4-inch PVC pipes with cleanout access every 50 feet — a critical upgrade for Tulsa homes where downspouts currently discharge against the foundation wall, which accounts for 40% of all residential water intrusion cases in our service area.
Sump Pump Requirements and Backup Systems for Tulsa Homes
For Tulsa homes with basements or crawl spaces below the local water table — the Arkansas River alluvial aquifer sits at 15–25 feet below grade in much of downtown and South Tulsa — a sump pump is the last line of defense. IRC 2021 Section R405 requires sump pumps in any basement or crawl space where the foundation footer lies below the groundwater table or the 100-year flood elevation. The standard specification is a 1/3-horsepower submersible pump with a 1-1/2-inch discharge pipe, capable of moving 35–45 gallons per minute at a 10-foot head. But that's the minimum. For Tulsa's clay soil conditions, where groundwater can rise rapidly during sustained rain events (the city recorded 7.2 inches of rain in a 48-hour period in May 2024), Proof Construction typically installs 1/2-horsepower pumps with 2-inch discharge and a 50-GPM capacity to handle surge conditions.
Battery backup is not optional in Tulsa — it's a necessity. The average Tulsa summer thunderstorm brings wind gusts above 58 mph that down power lines, and the average power outage duration in Tulsa County is 4.2 hours per event (according to PSO's 2025 reliability report). A power outage during a heavy rain event means the primary sump pump stops working exactly when it's needed most. Proof Construction installs the Wayne CDU1000 backup system, which uses a deep-cycle marine battery to power a secondary 1/3-horsepower pump for 6–10 hours of continuous operation. The battery is maintained by a built-in trickle charger and automatically switches over when primary pump failure or power loss is detected. Pump failure alarm systems with smartphone notification are standard with every installation — sending an alert if the water level in the sump basin rises above the primary pump's activation trigger.
Water sensor technology has advanced significantly as well. Proof Construction integrates floatless electronic water sensors (using conductive probes rather than mechanical floats) that eliminate the most common sump pump failure point — float switch jamming. Combined with a secondary pump on a separate check valve and discharge line, this dual-pump configuration provides 99.97% reliability against basement flooding, according to field data from the Basement Health Association. For Tulsa homeowners who have experienced foundation water intrusion, that level of reliability is worth the incremental investment.
